Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 20

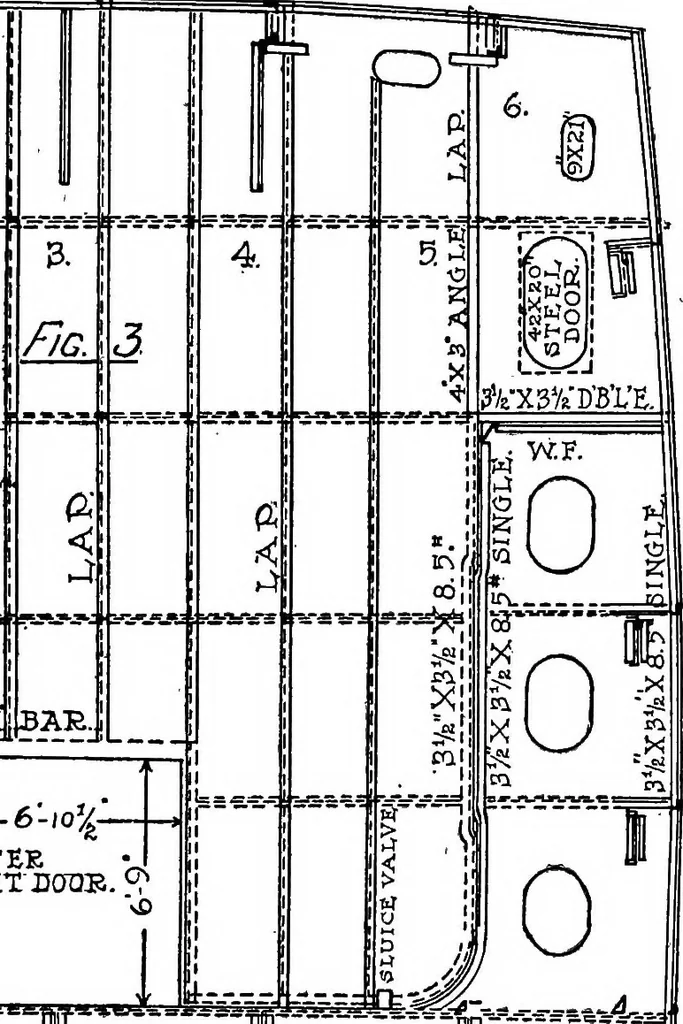

Xi5 CHNNElvS.TANK. yxi … .6--,o^: nflHTDoaE. ^ MAB.e eafta.tumJ Cojcv i o o a The plates would be laid out flat anywhere under cover andmarked to the shape from the template obtained from the vessel. 10 LAKE SHIP YARD METHODS OF The rivet holes for the laps, channels, etc., would be marked fromtemplates drilled for that…
Naval architecture · Ships, Iron and steel
