Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 31

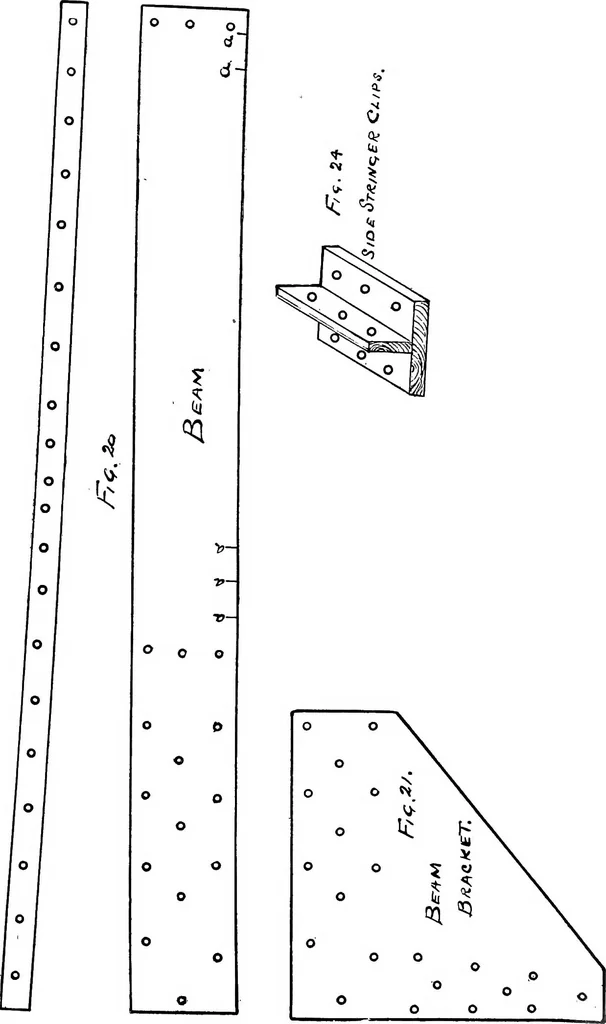

LI C4 20 LAKE SHIP YARD METHODS OF … STEEL SHIP CONSTRUCTION 21 FiciS ARaH 3/ifie.KETS Fig. 24 shows mold for stringer channel clips at side and all chan-nel ties throughout the vessel. Fig. 25 shows mold for brackets connecting the arch part of thebelt frame to the spar deck. These bracket plates are flanged to the arch so that the…
