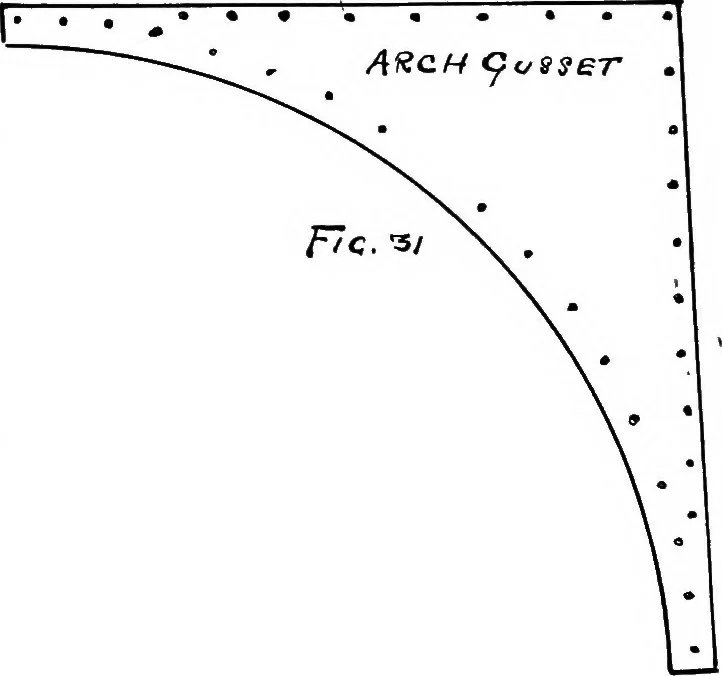

his frame an-gle runs from the centerkeelson to the main deck.The shell holes are obtainedfrom molds Figs. 1,3 and 14as explained. Fig. 36 shows mold forbulkhead plate half way be-tween side and center of shipwith stiffeners on seam andcenter. Fig. 38 sliows mold .forvertical stiffeners and Fig.39… … STEEL SHIP CONSTRUCTION 25 To divide a line into any number of equal parts. Fig. 40: Let ABbe the given straight line to be divided into a number of equal parts.Through the points A and B draw parallel lines AC and DB, formingany convenient angle with AB; upon AC and DB, set off the numberof equal…
