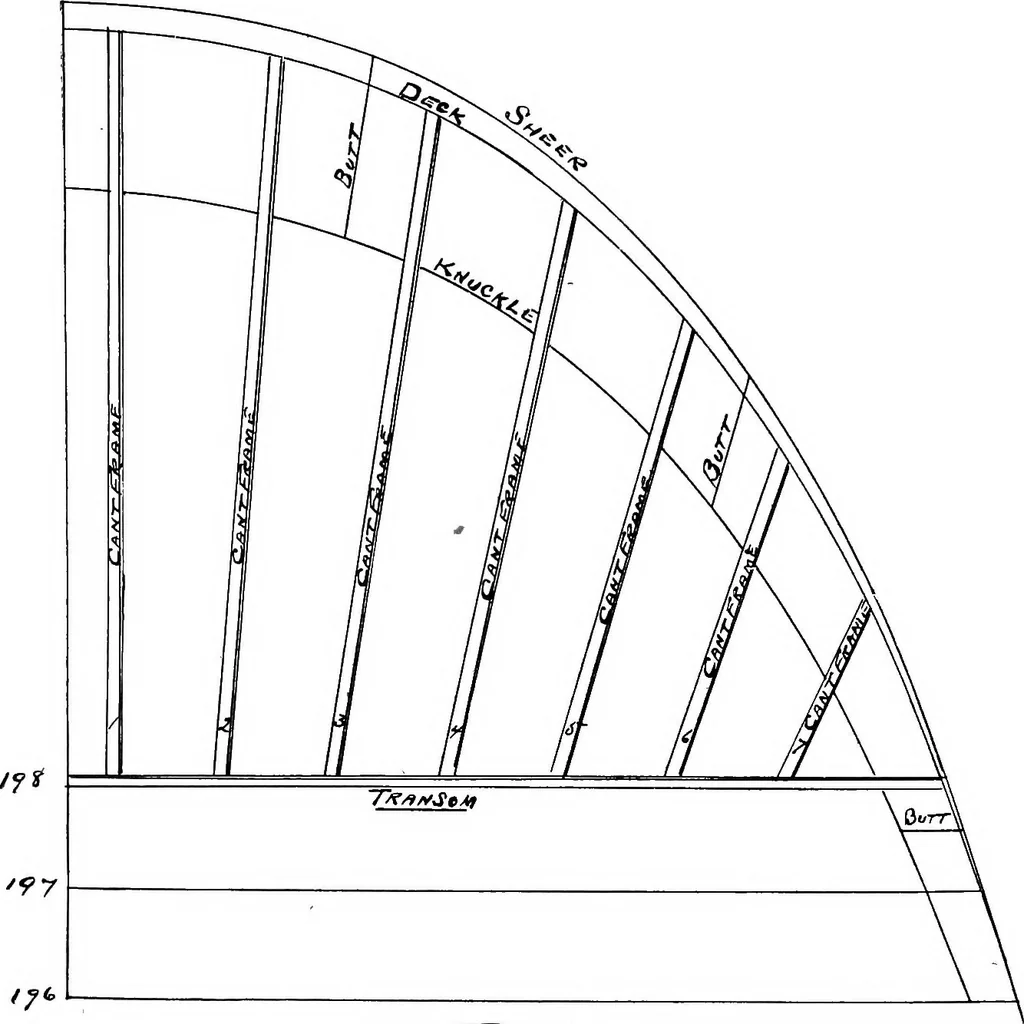

alf breadth plan. ED represents the extreme after end of the knuckle at center andby measuring from this line to where the buttock lines intersect theknuckles at side and transferring same to half breadth plan furnishesthe knuckle line, as shown on Fig. 68. By following up the numbered lines on the… … FT^p.^s: DF, Fig. 69, is the set line and is run in on the she^r plan at rightangles to CDG. G is a continuation of the line CD. From DG atright angles the lines 2 to 18 are run to the knuckle intersecting the STEEL SHIP CONSTRUCTION 59 44 . ft -0 II A^ ^tA (^ -A r- TT^AM^eM f,fi ^ ■n •*-^ /v^.(^^.…
