Mechanical and marine engineering science ... Specially written as a handbook to the Board of Trade examinations for extra-first-class engineers (1909)
Somerscales, A. N · Glasgow : J. Munro; London, Simpkin, Marshall, Hamilton, Kent · leaf 153

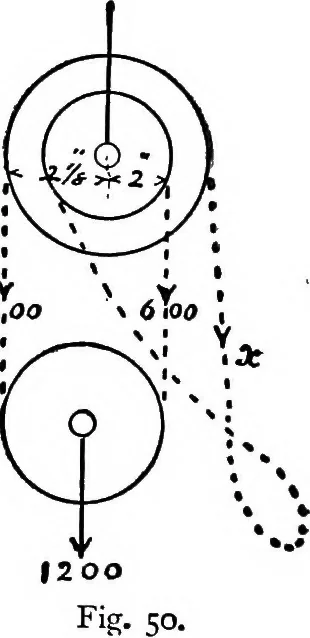

Neglecting efficiency and putting xfor pull required, see figure 50. {x X 2^)+ (600 X ?) = 600 X 2i•»=353 lbs.And allowing for small efficiency— pull = 353 X 48 = 735 lbs. … 6,00 \ 6ir Find the relation between the power and the weight inWestons pulley block having given diameters 8 in. and8^ in., and efQciency i2. P _ I W 2772 -Ans. MOMENTS. 151 9. A uniform beam, 36 ft. long, is supported at points 8 ft.from each end. The beam is merely loaded by its ownweight. Find…
Naval architecture
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
