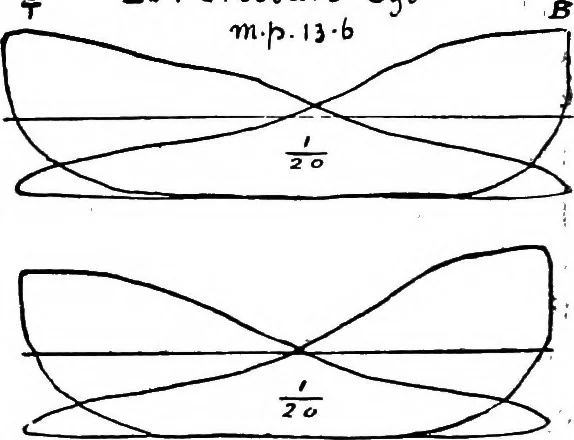

lo>v Pressure fiyl-■m-fs.ij-b … Fig. 118. scale as the intermediate cylinder diagram, but the only thing thatlimits the scale is the size of the paper which is used tor.thecombined diagram. and. In re-drawing the diagrams, the lengths of the severaldiagrams, instead of being nearly equal as taken off the indicatorbarrel, must be…
