Mechanical and marine engineering science ... Specially written as a handbook to the Board of Trade examinations for extra-first-class engineers (1909)
Somerscales, A. N · Glasgow : J. Munro; London, Simpkin, Marshall, Hamilton, Kent · leaf 373

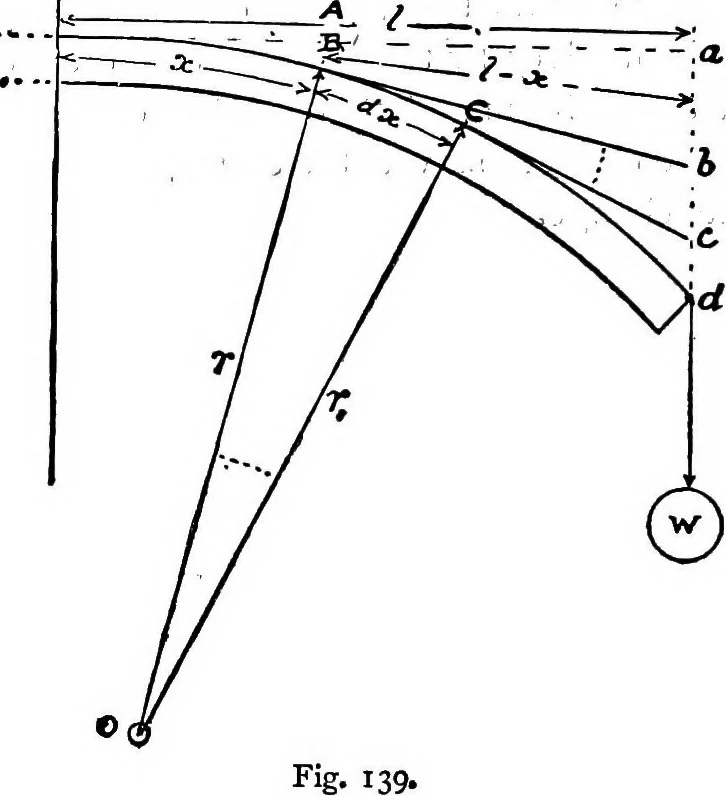

ion only. And as theradius of curvature changes so will the corresponding stresses andbending moments change. 19*—^Deflediion of Beiams. To prove that the defection at the &ee end of a cantilevep of uniform section is where W is load at end. 3I£ / is length, I is moment of inertia of the… … If a tangent is drawn at this position to the neutral surface ofthe beam and continued to the point (d), the distance {ab) willmeasure the deflection of the beam below the horizontal, due to thebending of the first portion of the beam x in length; the remainderof the beam being supposed unbent.…
Naval architecture
