Gage, Alfred P. (Alfred Payson), 1836-1903 · Boston, London, Ginn · leaf 579

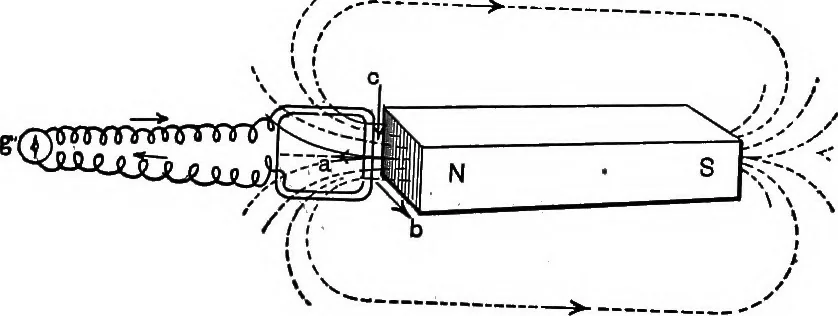

the following experiment. * Experimerit 1. — Connect a flat coil of about two inches in diameter,having several turns of wire, with a delicate galvanometer, and rotatethe coil at one of the poles of a strong magnet on an axis at right anglesto the axis of the magnet and the lines of force, as… … Fig. 448. c the direction of the current induced in the coil of wire fromthe movement of the coil across the field of magnetic force insuch a manner as to cut lines of force. If the coil be moved rapidly in front of the magnet, thecurrent is stronger and hence the E.M.F. must be greaterthan if it…
Physics
