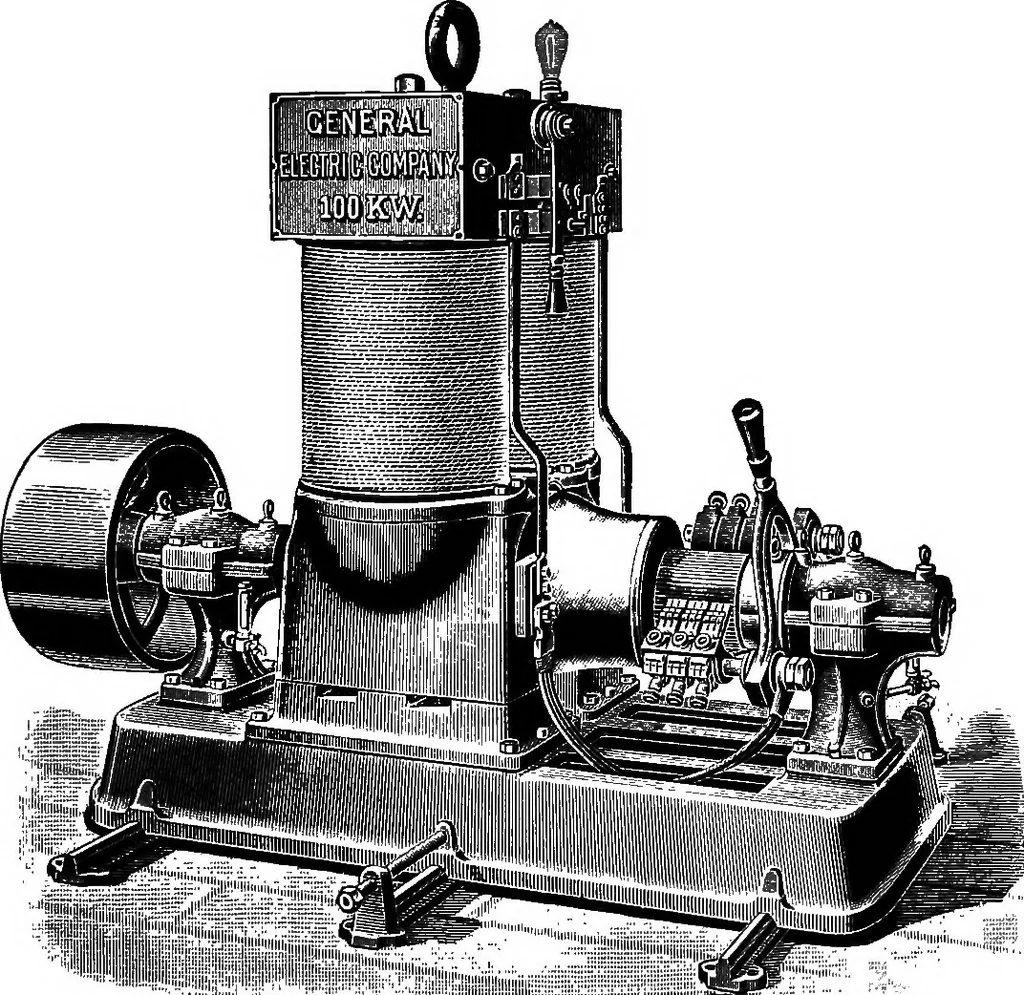

Fig. 458. the Weston. Large field magnets, A and B, are placed eachside of the revolving armature. A steam-engine communi-cates motion to the armature by means of a belt passing overthe circumference of the wheel W. The pole-pieces, as will CLASSES OF DYNAMOS. 569 be seen in the cut, are laminated… … FlG. 459. ing in most particulars with the first. It will be seen by thelatter figure that it is a shunt-wound dynamo. The terminalsof an automatic regulator for regulating the intensity of thecurrent are inserted in the binding screws a a. P is a so-calledpilot-lamp joined in multiple arc to the…
