Plane geometry, with problems and applications (1910)
Slaught, H. E. (Herbert Ellsworth), 1861-1937, Lennes, N. J. (Nels Johann), 1874- joint author · Boston, Allyn and Bacon · leaf 242

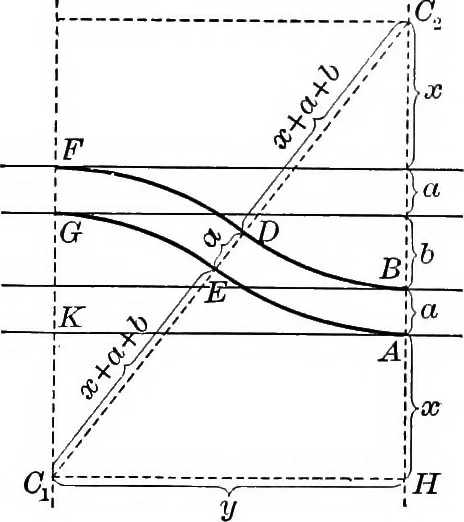

adii of the arcs used in constructing the figure. On the other hand, if the radii of the arcs are known, we maycompute the distance A K. This is a very common problem in railway construction.The construction is also used in laying out a curved streetto connect two parallel streets. 16. If in the… … 230 PLANE GEOMETRY. FURTHER DATA COHCERNING CIRCLES. 398. In Chapter II numerous theorems were provedconcerning the equality of arcs, angles, chords, etc. The three following theorems involve inequalities ofthese elements. The student should construct figures ineach case and give the proof in full.…
Geometry, Plane
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
