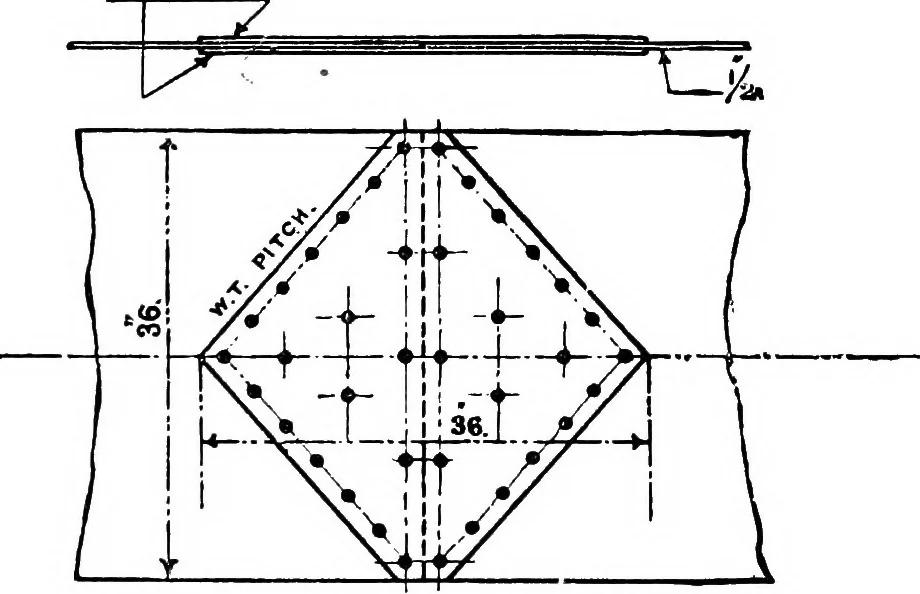

% \\\\ II % Kl Fig. 84. put in a larger number of rivets and thicken up the butt strap, … Fig. 85. there would still remain the line of weakness of the platethrough the line of holes, AA, farthest from the butt. Calculation of Weights, etc. 201 The most efficient form of strap to connect two platestogether would be as shown in Fig. 85, of diamond shape.Here the plate is only weakened to…
