Barrows, F. W. (Frank Wilson), b. 1853 · New York, N.W. Henley Pub. Co. · leaf 187

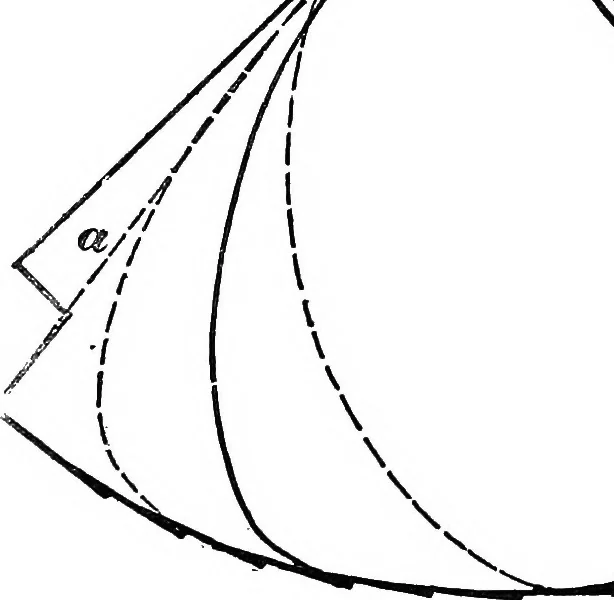

Fig. 79. need to be very careful or you will get below the surfaceas shown by lines on Fig. 76. Then finish up with planeand spokeshave, being careful to work just down to thelines formed by face of courses, and dont leave the face 186 PATTERNMAKING. all humps and hollows, because it wont look… … w \ r* Fig. 8o. as shown by the different outlines on Fig. 80, a piece isfitted across the blade as shown by Fig. 79 at a and fas-tened on with screws. As this piece is intended to keepthe blades straight while being moulded, it should be fittedvery closely and well fastened. Now turn over and chop…
Patternmaking
