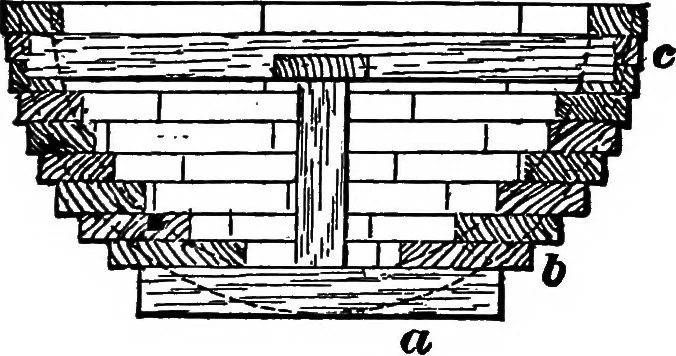

Fig. 95. in the figure. Work the halves of the ball along together,and while waiting for the glue to dry get out four piecesfor braces or arms, as long as the diameter of ball, andhaving a cross-section about 2x4j. These should be … Fig. 96. halved together at their centres, forming two crosses, onefor each half of pattern. When you get the halves of the 212 PATTERNMAKING. ball built up to the course marked c, rough out the inside tosuch size and shape as will leave it, when finished outside,about if thick. Then cut in the…
