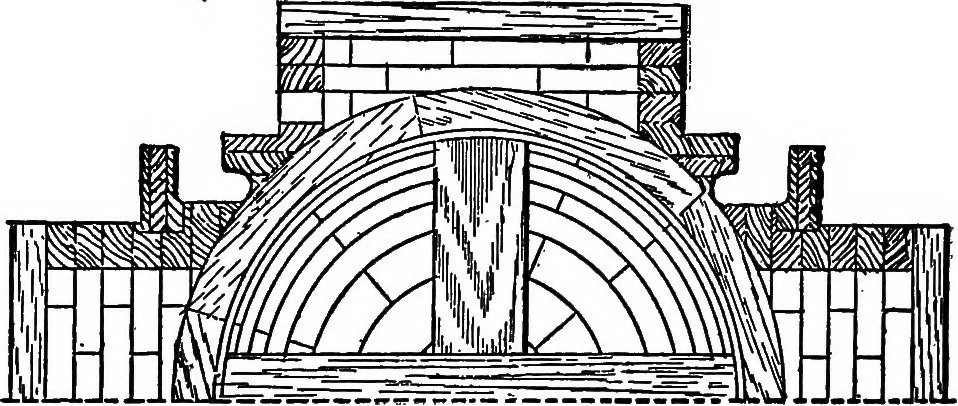

traight hne. We can 214 PATTERNMAKING. now locate the yoke end midway between these branchesand at right angles with them. This is also a place whereaccuracy is very desirable if you wish the core to fit nicely,as the core is liable to be laid in the mould either side up,and it is evident that it… … Fig. 9 vice versa, when it is at right angles with this line it is alsocentral. This follows from the mode of construction. Fig. 99 shows the pattern complete. Fasten on all thebranches with plenty of screws and you will have a good,strong pattern and one that will mould nicely. Put agood, stout…
