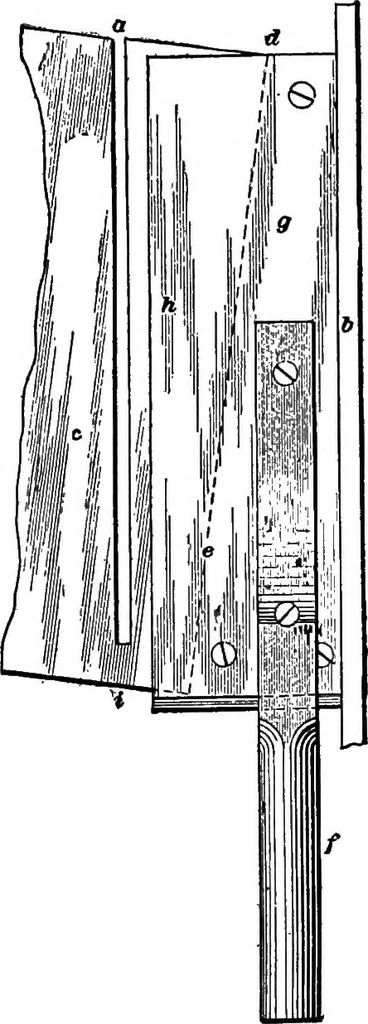

re it isnt likely thatany one will cut round coreboxes exactly to the line inthis manner. Staves may be hollowed outin this way very nicely andrapidly. For this purpose youwant a keen saw, and one thatis very stiff. A better way of roughingout core-boxes is also shownin Fig. 3, where v, 5, 6 is the… … Fig. 4. 70 PATTERNMAKING. may be made dose together or even overlapping near thesides of box so as to remove more of the wood shown abovegroove marked i. Fig. 4 shows a very common way of sawing wedges.The gauge is made with one side shown by dotted line
Patternmaking
