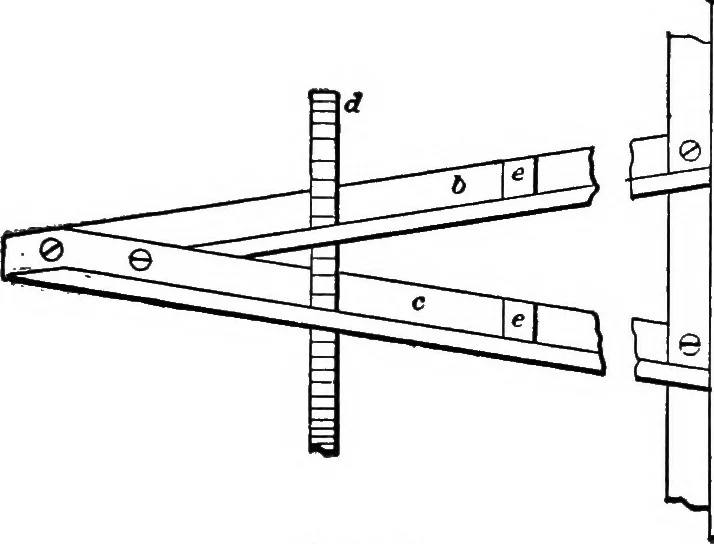

ut for e parallel with the saw in its present posi-tion, we can finish the gains. If the saw-table has no adjustable slide, make a slide asshown in Fig. 12, where a is the fence, be the slide orgauge, and d the saw. The two sides of the gauge h and c THE CIRCULAR SAW. 77 should have a section hke… … Fig. 12. to be dovetailed, as the fence is not to be moved whilesawing the gains. At e, e are shown the hard-wood strips which determinethe space between cuts. The saw kerfs for holding theseslips are made by setting the fence one space nearer thesaw before locating it for cutting the gains. There…
