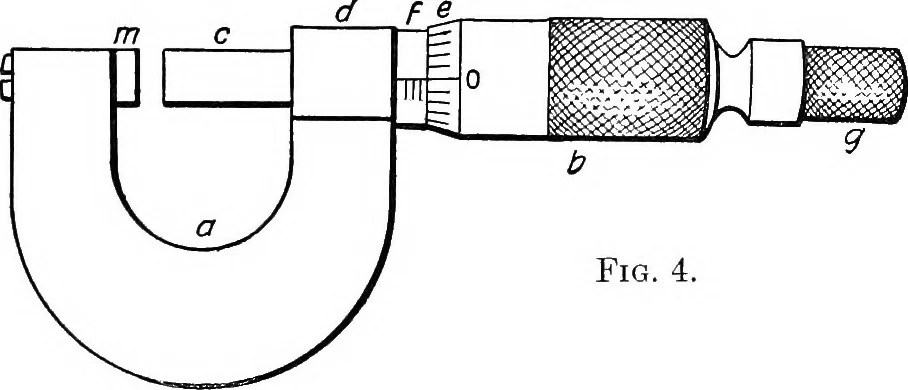

may not be parallel to thescale. 3. Too great pressure may bend jaws or change dimen-sions of the object measured. C Fig. c. MECHANICS 5 II. To MEASURE THE DIAMETER OF THE CYLINDER WITHTHE MICROMETER CALIPER. The micrometer caliper, Fig. 4, consists of a uniformscrew moving in a fixed nut. The nut… … Fig. 4. Examine the caliper and determine the followingquantities: 1. Length of a division on the hnear scale on the nut. 2. The pitch of the screw. 3. Number of divisions on the micrometer head. 4. The distance advanced by the screw when it isturned through one division on the micrometer head. 5.…
