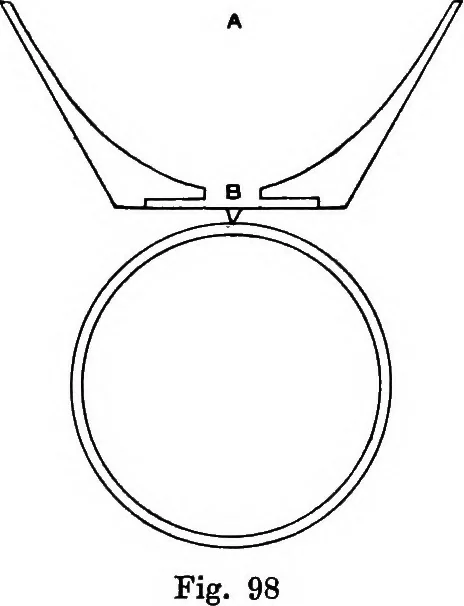

nder is rotated at auniform rate by clockwork orother means, and is mountedon an axis on which a screw iscut, so that it moves along itsaxis as it rotates. By thismeans the trace made on the wax by the style is in the formof a helix from end to end of the cylinder. In some forms of the phonograph… … 247] PHONOGRAPH, MICROPHONE AND TELEPHONE 217 The air-waves that enter the cone set the diaphragm invibration, and the style cuts a furrow in the wax, the depthof the furrow varying from point to point in accordance withthe varying displacement of the diaphragm. When the cutting of the furrow has…
