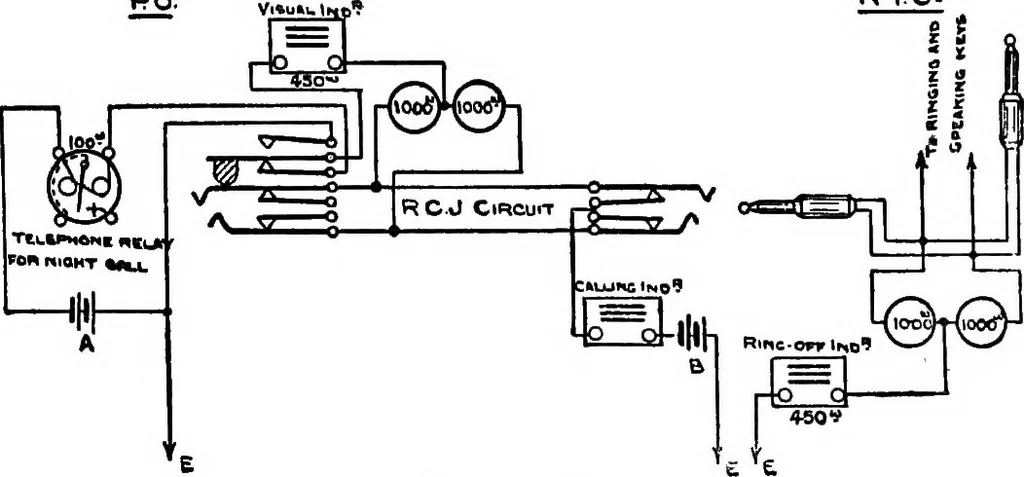

circuit terminated upon a switch sectionis illustrated in Figure loi. It will be seen that the loop passes to the longand short springs of an eight-point switch-spring, the three top springs ofwhich are used for signalling, as in the case of the ordinary transfer circuits.Across the loop is placed,… … Figure 101. which are connected together to a visual indicator, having an earthedbattery joined to it. In the normal state of affairs, the negative pole ofthe battery A at the Post OiBce passes through the relay, bottom andcentral springs through the visual and along both lines in parallel.…
