An elementary treatise on mechanics for the use of the junior classes at the university ... With a collection of examples (1863)

Parkinson, Stephen, 1823-1889 · Cambridge [Eng.] Macmillan · leaf 61

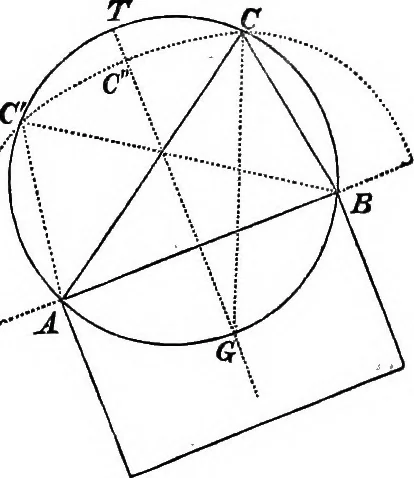

An illustration from An elementary treatise on mechanics for the use of the junior classes at the university ... With a collection of examples, 1863, leaf 61 — P. M. 4 50 OF FORCES ACTING IN ONE PLANE. … To determine the position of the string ACB of givenlength in order that the line CG,passing through G a given point inthe frame, may bisect the angleA CB. We may construct it geo-metrically thus,—with A, B as foci _/describe an ellipse whose major-axis /equals A GB; also describe a circle \round…

Mechanics

Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
