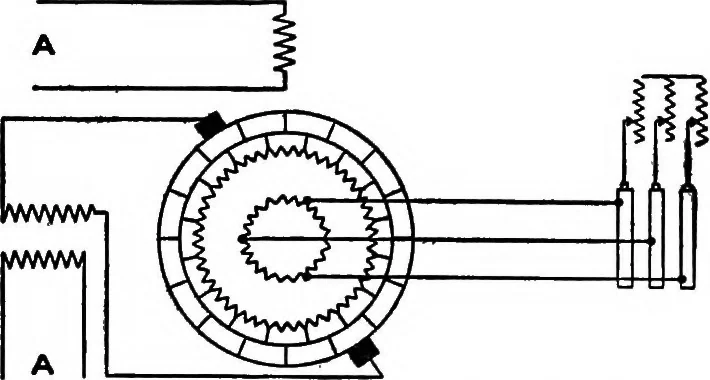

precisely analo-gous to a cc shunt motor in which the brushcircuit parallel to the stator axis plays thepart of the armature circuit, the workingemf being induced in it by the transformeraction from the primary, instead of beingconducted-in directly. The cross flux per-pendicular to the stator axis… … Fig. S.—Compensated Single-phase Induction Motor main single-phase winding (with or withoutone or several auxiliary windings on thestator), whilst the rotor (in the principalform) has two windings; a normal three-phase short-circuited winding (preferablywith slip rings) and a cc type of…
