Hobart, H. M. (Henry Metcalf), 1868-1946 ed · Philadelphia, J. B. Lippincott · leaf 199

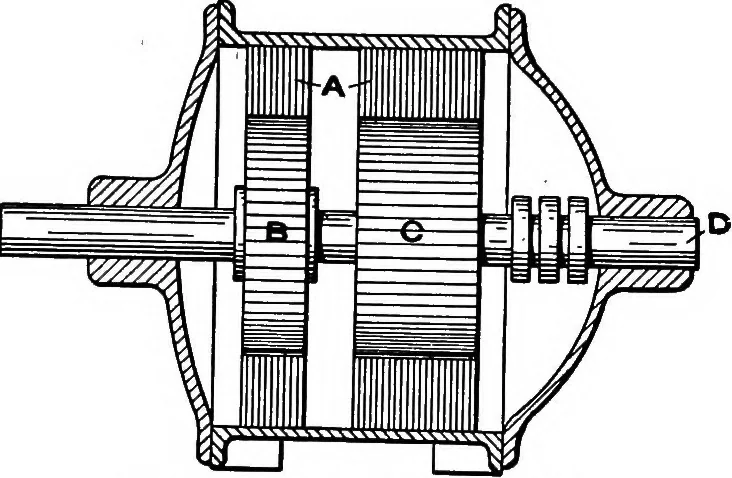

e shaft—has windingsleading to three slip rings. At starting, oneof the auxiliary stator windings is shuntedby a resistance, when the currents produce a revolving field, which starts the rotor B.The auxiliary set then acts as a phase splitter,and by suitable connections from this circuitto the main… … Fig. 26.—Corsepius Single-phase Motor stator winding, and by the two main ter-minals; a sufficiently symmetrical polyphasesupply being delivered to the main stator. Akno Single-Phase Motor.—This isdescribed under Arno Single-phase Motor.See also Arnold Single-phase Electro-pneumatic Traction…
Electrical engineering
