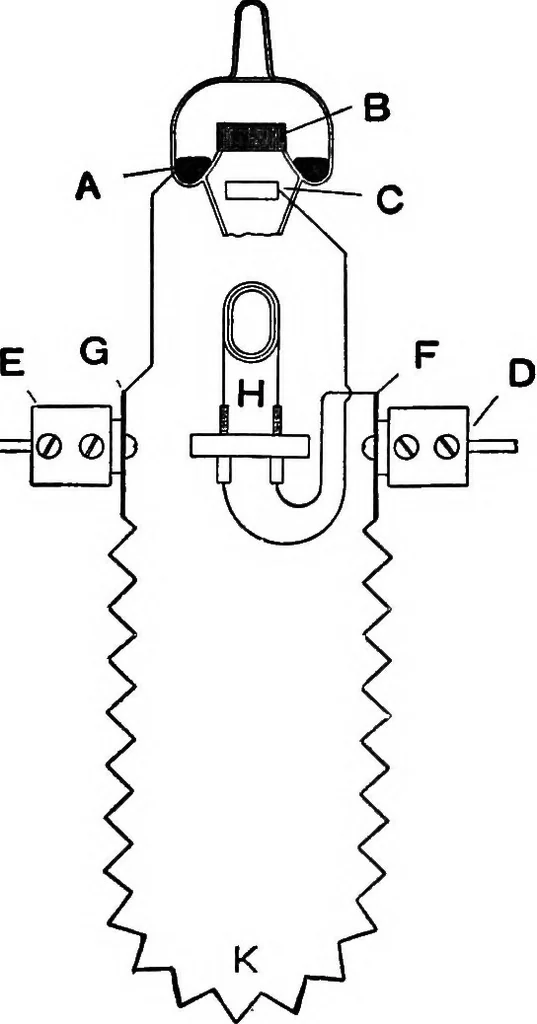

r, the electrolyte consists of a doubleiodide of mercury and potassium, and prac- Meter 339 tically fills the whole of the electrolyticcell, which is hermetically sealed. The anodeis composed of mercury, and an iridiumcathode is used. The electrical circuit isshown in the fig. A is the anode… … Wright Electrolytic Meter resistance H is used in series with the cell-circuit to compensate for temperature varia-tions. The cell-circuit leads G, F are brazedto the manganin, low-resistance shunt Kwhich bridges the terminals of the meter, ofwhich E is the positive and D the negative.On the…
