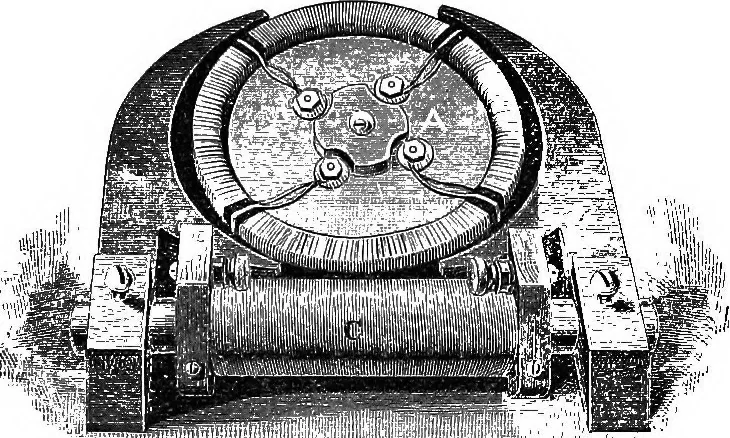

e armature; the armature rests on a pointed bearingand Is easily lifted off; the brush holder, B, revolves on the base of the DYNAMOS AND MOTOBS. 503 shaft that supports the armature, and is removable. I., Fig.468, shows thearmature and magnet; II. shows the commutator sections on the under… … Fig 468 I lines of force with iron filings. Remove the field magnet, and re-place the armature. Connect the brushes with a battery or handdynamo, and send a current through the armature. Mount a cardover the armature, just out of contact with it. Sprinkle on ironfilings. Study the lines of force of…
