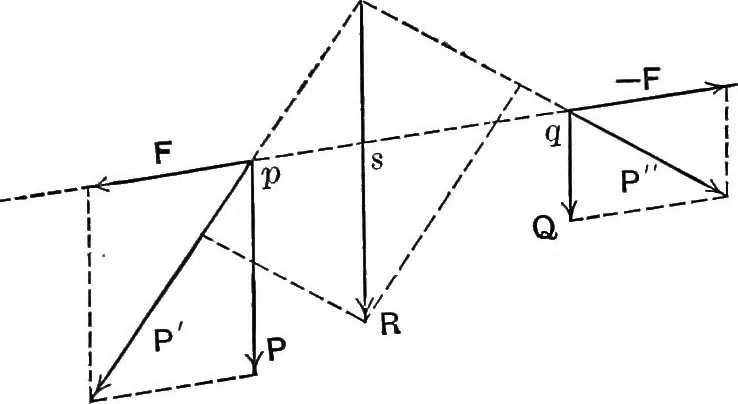

tion of moments (Arts.89-93) applies to parallel forces. io8.] PARALLEL FORCES. 6l 107. The resultant of two parallel forces can also be found bythe following simple process. Intersect the two parallel forcesP, Q by any transversal in/ and q (Fig. 23) and apply at thesepoints along pq two equal and… … Fig. 23. It will be noticed that this construction reduces to that givenin Art. 104 if for Fvie. select the force 2 C in the force polygon,Fig. 22, p. 59. 108. Resultant of Any Number of Parallel Forces. The graphi-cal method of Art. 104 is readily extended to the general case ofany number of…
