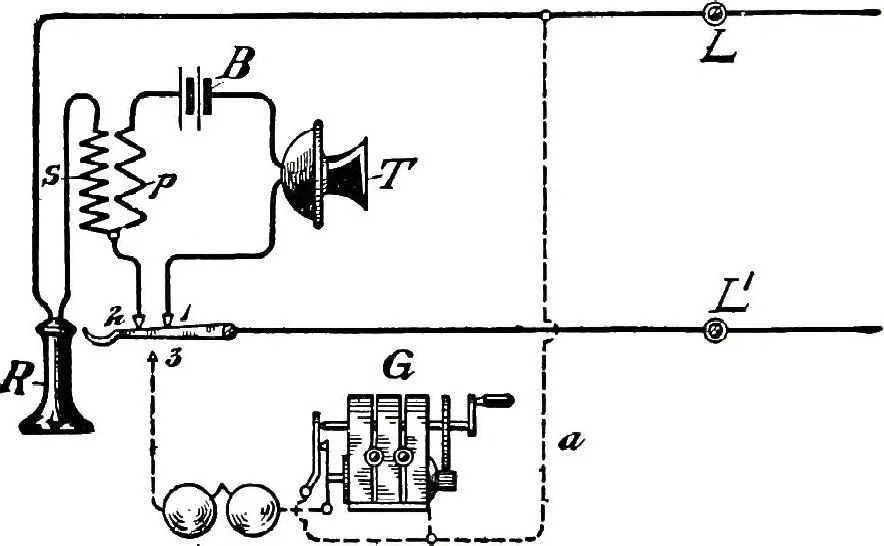

ine being represented by full lines.Under these conditions a calling current from some other stationcoming in over the line to the binding post, L, forming one terminalof the instrument, will pass through wire, a, the shunt, s, of thegenerator, G, thence through the winding of the call bell magnet,… … C s FIG. lOS.-SERIES CIRCUIT-IIOOK UP. breaking the shunt around the armature, and thereby allowing thecurrent generated in the armature to pass out over the Hne and ringthe bell at a distant station. In Fig. 108 the hook is shown in its raised position as when re-leased from the weight of the…
