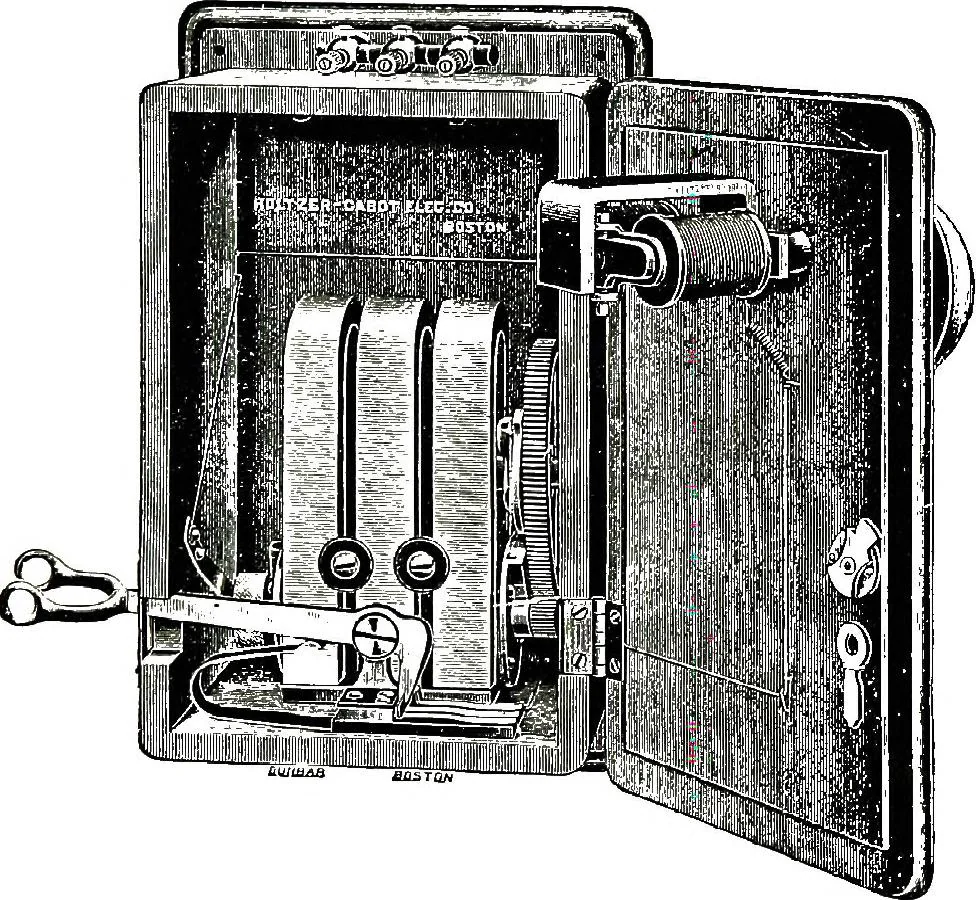

ig. 113 is adapted to such arrangement. In order to facilitate the work of making connections betweenthe parts contained in the generator box and the other parts, thatiSj the transmitter, receiver, battery and induction coil, in case thisis not placed within the box, and also with the line, the… … PIG. Ill—MAGNETO BELL BOX. the terminals of the instrument as a whole. The center bindingpost forms the ground terminal of the lightning arrester, not shownin this figure, and has no connection within the box. The six binding posts at the bottom of the generator box are inthree pairs, r, I, and s.…
