Miller, Kempster Blanchard, 1870-1933 · New York : McGraw publishing company · leaf 168

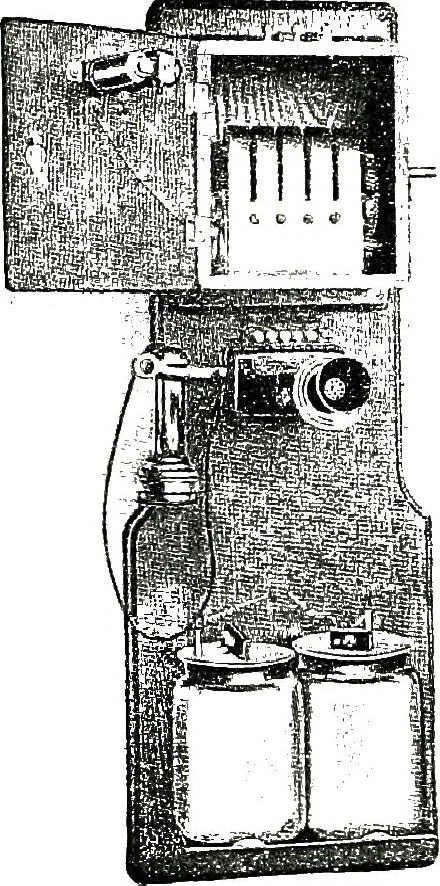

may be mounted in any convenient part of the deskand to which the various wires leading to the generator, bell, bat-tery, etc., may be attached. Fig. 124 shows the general scheme ofwiring used by the Stromberg-Carlson Company in their seriesmagneto desk set arrangement, the generator being mounted… … FIG. n22.-STROMBEEG-CARLSON TELEPHONE- USING TRIPLET. the desk so that its crank may be in easy reach of the subscriber.This shows the standard Stromberg-Carlson desk stand, in whichthe induction coil is carried in the base of the stand. In Fig. 125 is shown a different arrangement, wherein the…
Telephone
