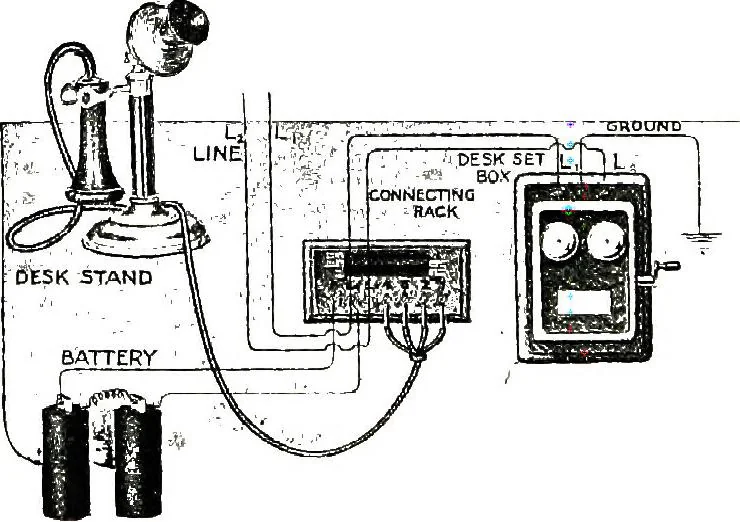

KIG. 124.—WIRING OF DESK SET. where, for any reason, it is undesirable to run a flexible cord leadingfrom the desk stand to the generator box. By mounting the in- … FIG. 123.—WIRING OF DESK SET. duction coil on the connecting rack, the four wires leading to theprimary and secondary of this coil may be connected permanently LOCAL BATTERY SUB-STATION EQUIPMENTS. 149 to their respective binding posts on this rack, thus somewhat sim-plifying the external wiring.…
