Miller, Kempster Blanchard, 1870-1933 · New York : McGraw publishing company · leaf 626

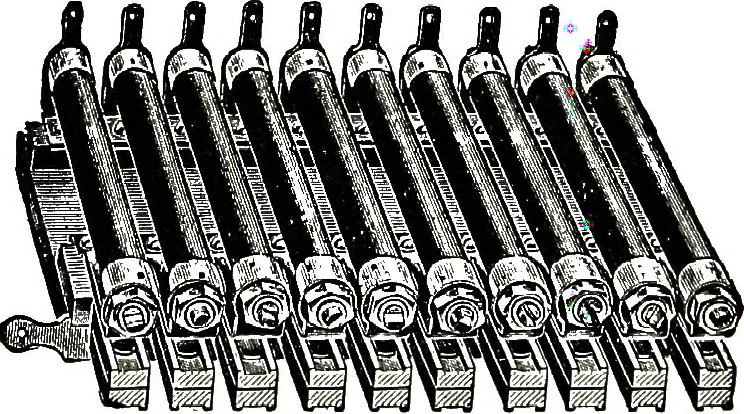

ring both the semi-circularbrass plates. The screw holding this carbon in place is permanentlyconnected to the ground binding post, these connections being shownin Fig. 439. The lightning arrester usually furnished by the Stromberg-Carl-son Company on their telephone sets is shown in Fig. 440, in… … FIG. 436.-BANK OF TUBULAR FUSES WITH CARBON ARRESTERS. coil shown in Fig. 425 is typical of standard practice in heat coilconstruction, it being the type almost universally used vmtil a veryrecent time. As two heat coils and two carbon arresters are used in connectionwith each line circuit in a…
Telephone
