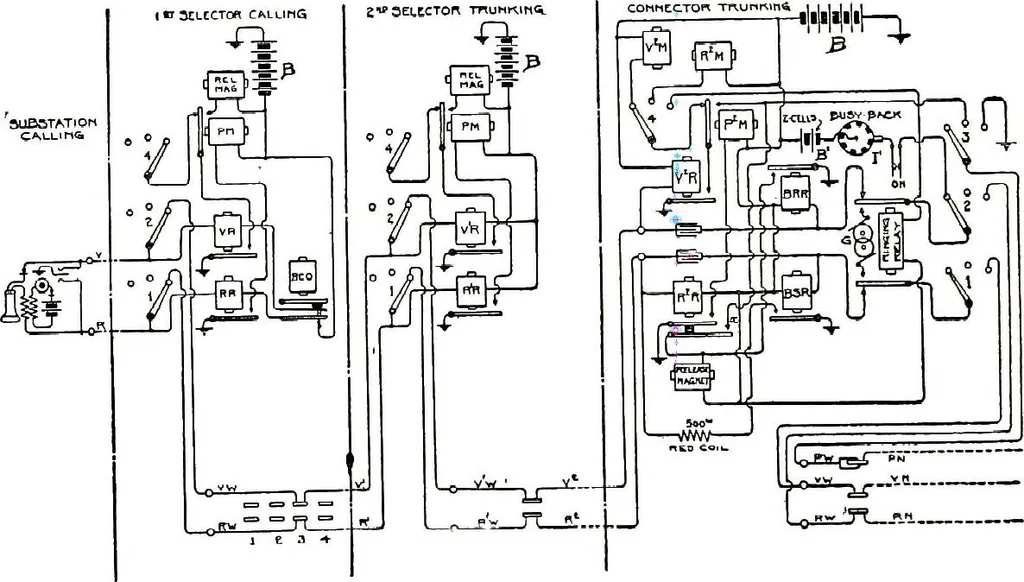

nstead, the lever, 4, of the sideswitch merely places the rotary magnet, i?^ M, under the control ofthe vertical relay in place of the vertical magnet. This action isclearly shown in the diagram of Fig. 517, where it will be seenthat with the side switch in its first position the vertical magnet,p… … FIG. 517.—FIRST AND SECOND SELECTORS AND CONNECTOR AFTERPULLING SECOND DIGIT. as was the vertical magnet before. As a result of this when thefourth and last movement of the dial is made the scries of impulsescoming over the vertical side of the line will actuate the verticalrelay as usual, but its…
