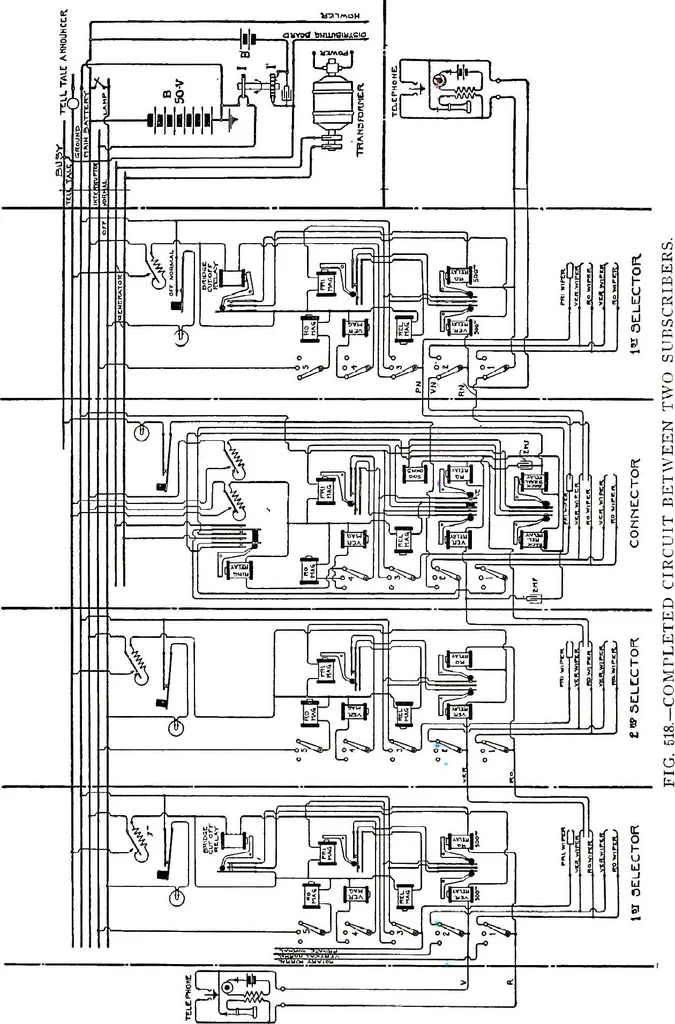

moved into its thirdposition, the coil of the ringing relay was brought into the localcircuit of the vertical relay of the connector. Pressing the ringingbutton at the calling sub-station at this time therefore causes theenergization of the ringing relay. These circuits are most clearlyshown in… … AUTOMATIC SWITCH-BOARD SYSTEMS. 721 called subscribers line and the calling generator, G. The bell ofthe called subscriber is thus rung, and when he responds the con-versation ensues over the circuit shown in the lower diagram ofFig. 513- No mention has yet been made of the back signal relay, B S…
