Miller, Kempster Blanchard, 1870-1933 · New York : McGraw publishing company · leaf 812

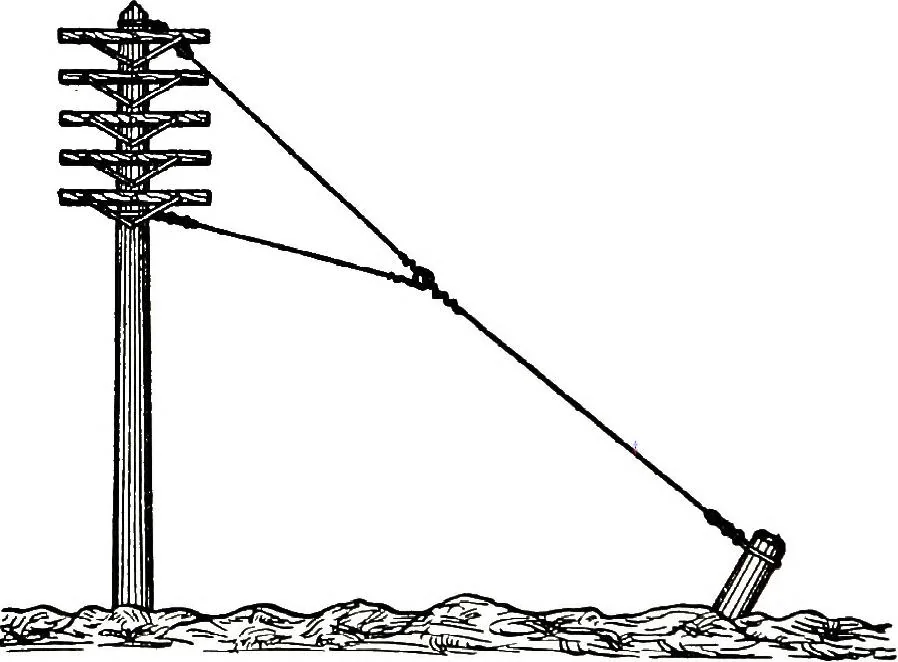

FIG. 564.-SIDE GUY. guy each pole. Beginning at the center of the curve, head-guysshould extend from the base of each pole to the top of the next polein each direction from the center. The shorter the turn the greater … FIG. B65.—Y.GUY. the strain, and the greater therefore must be the precaution takento meet it. In Fig. 564 is shown an ordinary side guy used in light lines wherethere are but few cross-arms. POLE LINE CONSTRUCTION. TJ] Where more than four cross-arms are used a Y-guy (Fig. 565)should always be…
Telephone
