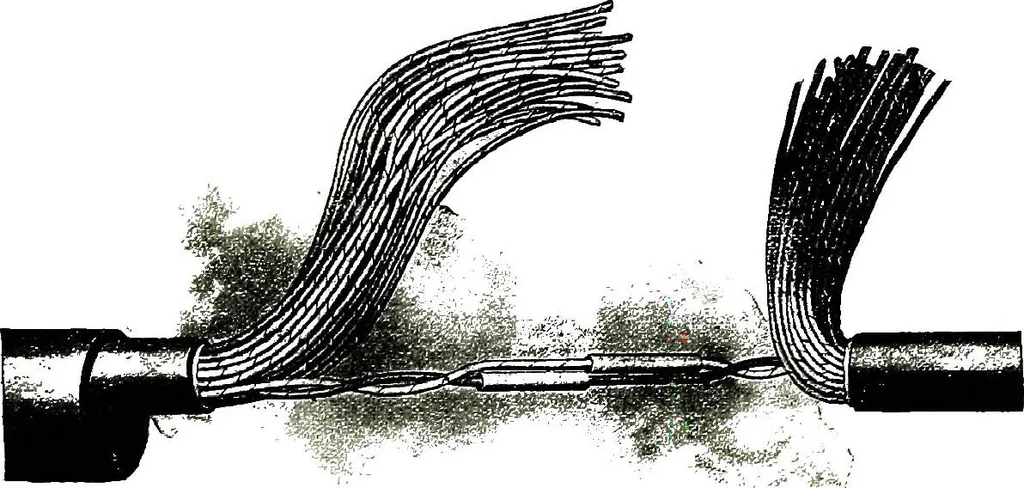

th. This is to prevent paraffin applied inthe next operation from following along the core of the cable withinthe sheath. The next operation is to dip the end of the cable so prepared inhot paraffin, which must be heated above 212 degrees F. Thecable ends should be held thus immersed until all… … FIG. 601.—CABLE SPLICING. A sleeve, consisting of a lead tube of the following dimensions forvarious sizes of cable, should then be slipped over one of the cableends and back out of the way. Lead Sleeves—Straight Joints. 150 pair cable 30 inches x 3 inches x yi inch 120 ICO 9060503025 28 ■ X23/…
