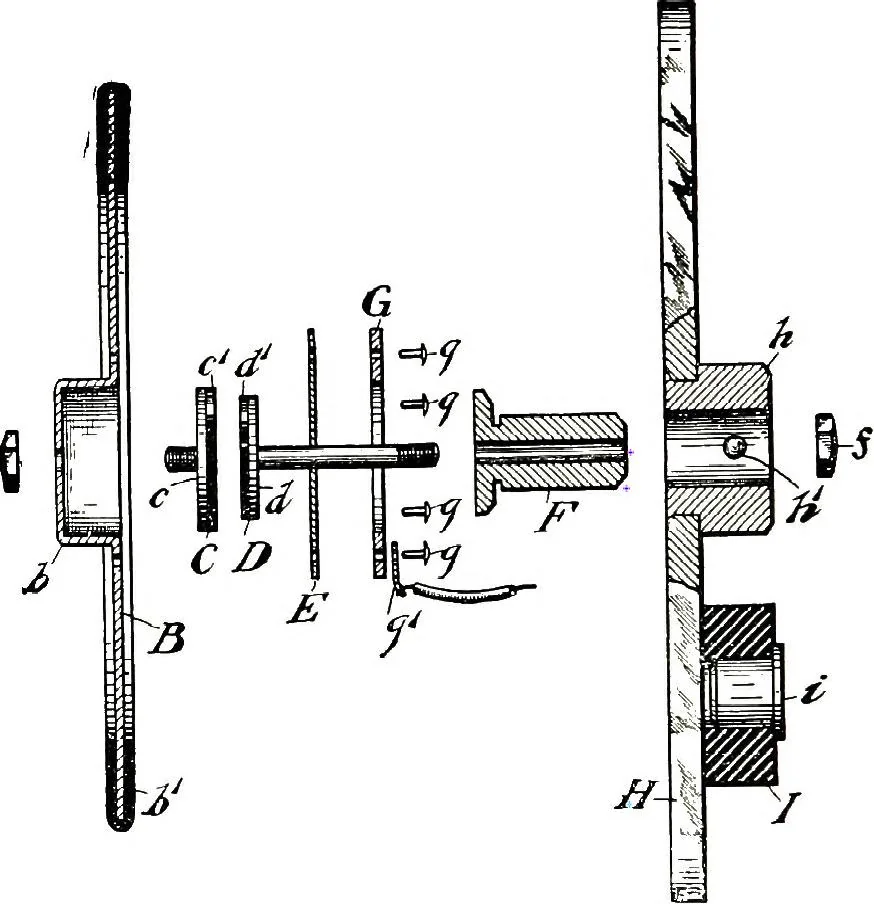

lectrode, D, passes througha mica washer, £, and a heavy brass bushing, F, having an enlargedface to clamp the mica washer against the rear face of the electrode.These parts are tightly clamped together by means of a small nut, /.After assembling the parts thus far, the proper amount of… … FIG. 4S.—DETAILS OF KELLOGG TRANSPUTER. an aluminum ring, G, and the small rivets, g. Under the heads ofone of the rings is fastened a small clip, g, by which electrical con-nection is afterwards made with one of the terminals of the trans-mitter. The diaphragm of the transmitter is thus made, to…
