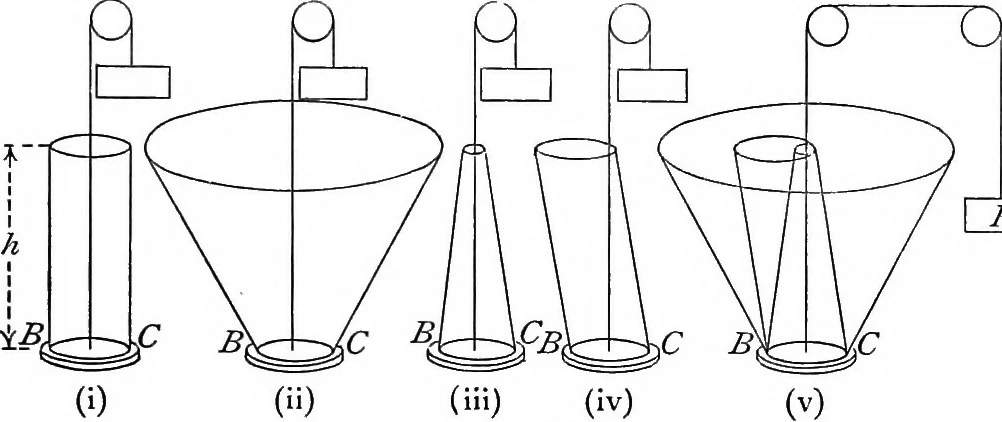

tical;this is seen from the consideration of the equilibrium ofthe liquid in (iv). The hydrostatic thrust on a piece of straight pipe,slanting at an angle a to the vertical, cut off by twohorizontal planes at a vertical distance h is thereforeequivalent to a couple of moment | Wh tan a, if Wdenotes… … [S Fig. 34. 44. A Liquid in Communicatinff Vessels maintainsits Level. Communication can be established by pipes betweenthe vessels, and the equilibrium will not be disturbed, ifthe vertical depth of the liquid is the same in each vessel;but if the depths are originally different, then when…
Hydrostatics
