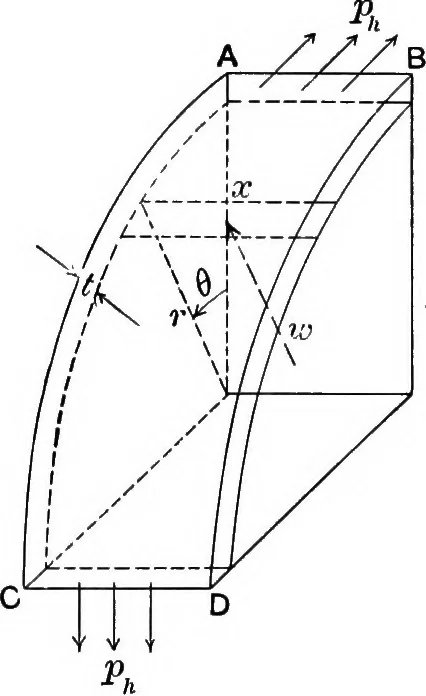

asa free body. The only forcesacting upon this portion of thehoop are those due to the hoopstresses, ph, on the surfacesAB and CD, and those due tothe internal fluid pressure w onthe internal cylindrical surface. As this portion of the shellis in equilibrium under theaction of these forces, we… … Fig. 2 (wxrdd) cos 6 — phxt whenceand xtph wxr. P* = — wrt This is the hoop tension in pounds per square inch. In this discussion the compression in the material ofthe shell, which is due to w and gradually diminishes from 172 MECHANICS OF MATERIALS w at the inner surface to zero at the outer…
