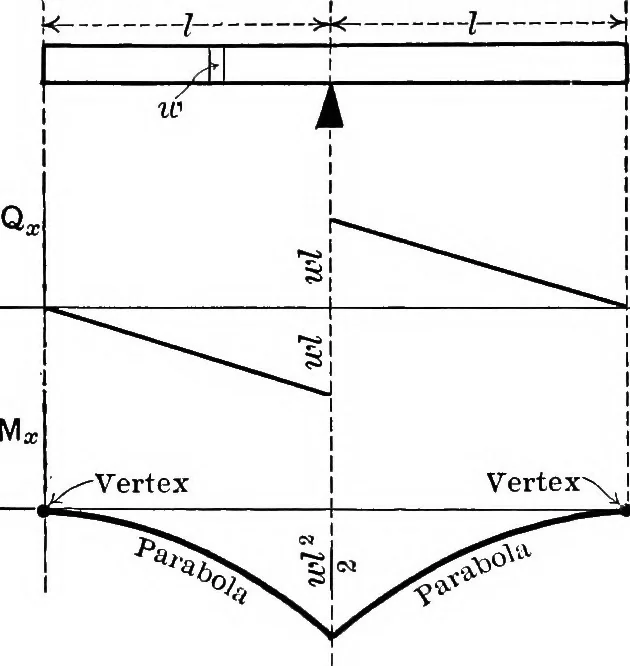

diagram is represented by a straight line and theB.M. diagram by a parabola, vertex at x = I. Exercise 31. Show that the B.M. diagram for the abovecase is a parabola with its vertex at x = I and explain andprove its construction as indicated in Fig. 15 (c). 3° MECHANICS OF MATERIALS .. Exercise 32.… … ^i « Fig. 17Exercise 33. Write equations for S.F. and B.M. andconstruct the S.F. and B.M. diagrams for the loadings shownin Figs. 18 and 19. STRESSES IN BEAMS 31 Exercise 34. In the uniformly loaded beam in Fig. 19find the points at which the B.M. is zero. W Q3 M, Iii Fig . 18 TT w w 1 Qx h* h I k…
