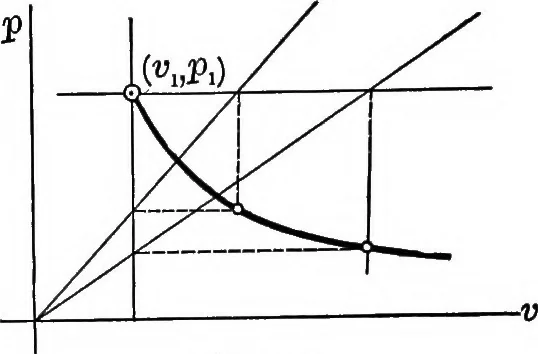

in Fig. 13 (b), bounded by the hyper-bola, the ordinates pi and p2, and the axis of v. Isothermal Expansion; the Hyperbola. — The follow-ing is a simple construction for plotting the hyperbolaas used in work diagrams involving the isothermal ex-pansion of gases. As in Fig. 14 assume axes of zero… … Fig. 14 shows how points on the curve are then located. Exercise 21. Show that the construction illustrated inFig. 14 produces a curve whose equation is pv = constant= piVi. Extend the construction of the curve in Fig. 14above the point {vi, pi). Theoretical Indicated Horse-Power of the Steam…
