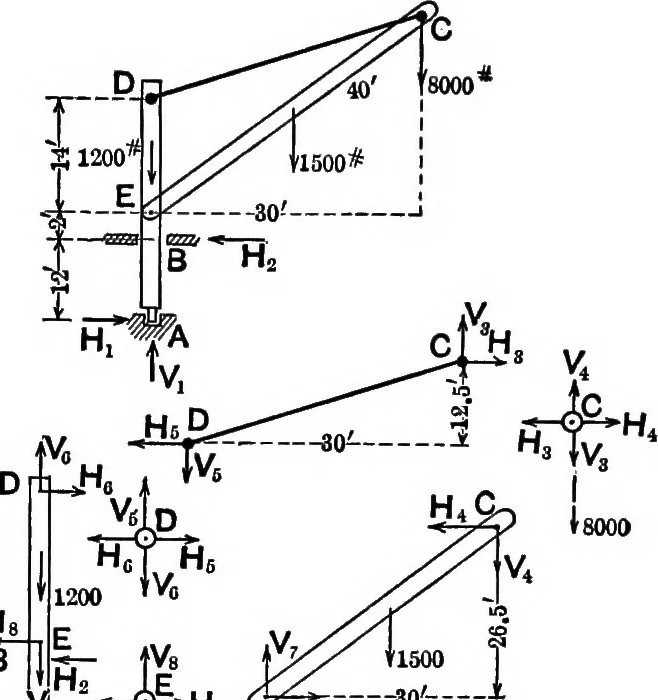

o be solved graphically by con-sidering the whole structure as a free body and so find-ing the forces acting upon the post at A and B. Thenconsider the jib as a free body and thus find all otherrequired forces. Exercise 96. Find the reactions of the abutments forthe crane shown in Fig. 52. Exercise… … K. n %- tVs ^^1^ B H, y Fig- S3 The following analytical solution of the crane alreadydiscussed illustrates a general method of solution whichmay be appHed to any frame. In Fig. 53 the whole frame is shown as a free body. 72 APPLIED STATICS From it the reactions Ei, Vi, and H2 of the abutmentsat A…
