Cycling art, energy and locomotion: a series of remarks on the development of bicycles, tricycles, and man-motor carriages (1889)
Scott, Robert Pittis · Philadelphia, J. B. Lippincott · leaf 50

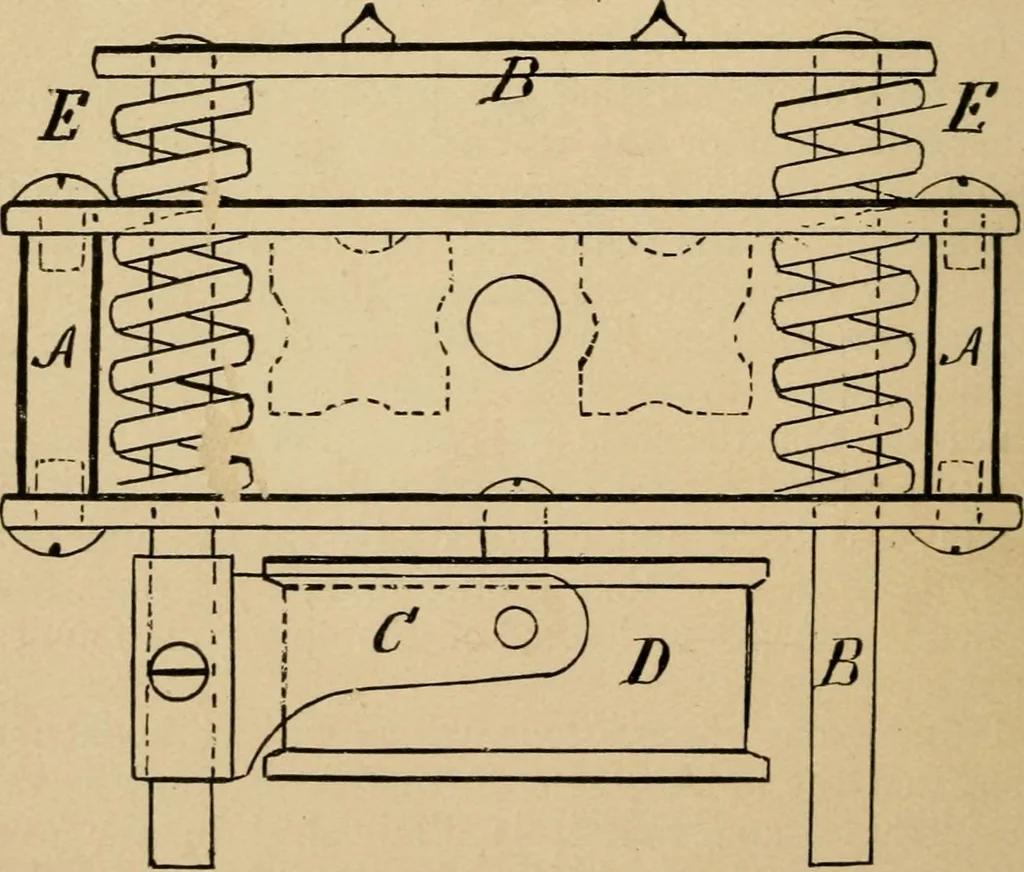

omain ofother experiment, I merely state the result. CHAPTER VI. GRAPHIC ILLUSTRATION OF THE APPLICATION OFPOWER TO CYCLES—KINEMATICS. The manner in which the construction and generalarrangement of the driving mechanism, the road sur-face, and other conditions control the application ofpower is a… … The Cyclograph. A frame, A A, is provided with means to attach it tothe pedal of any machine. A table, B, supported by 48 THE CYCLOGRAPH. 49 springs, E^ E, has a vertical movement through theframe A A, and carries a marker, C. The frame car-ries a drum, D, containing within it mechanism whichcauses…
