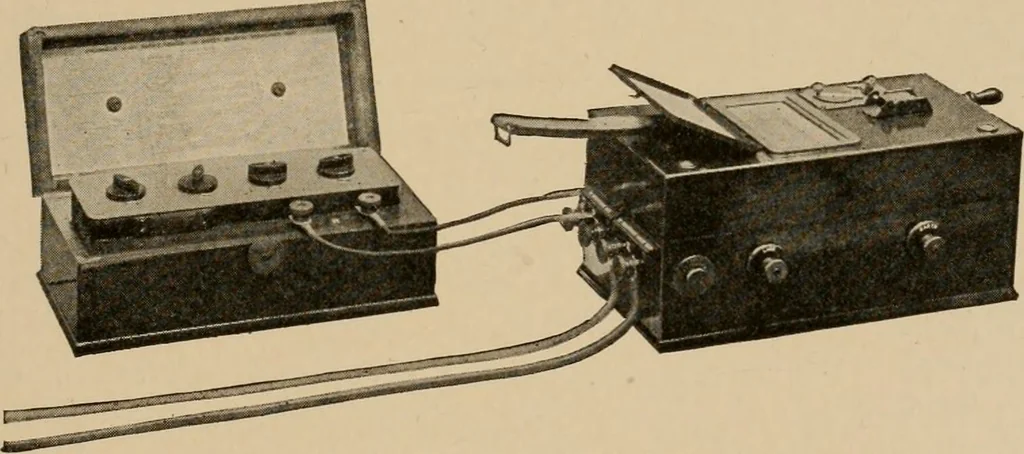

ohms and megohmsis taken. Bridge Megger. The bridge megger, shown in Fig. 59, as itsname implies is an instrument which combines the functions of a Br /? M^l£ UNDEK resTy GHMNQE-OVEE SWITJH W(f= -RATIOSVYiTJH y^^^ fi LEAK tflRTH Fig. 58. Diagram of Connections for Testing Insulation Resistance with… … Fig. 59. Bridge Megger and Resistance BoxCourtesy of James G. Biddle, Philadelphia used, as low as .001 ohm and up to about 1 megohm. The generatoris of the constant pressure type and is provided with two windingswhich, for megger measurements, are coupled in series and give arange of voltages up…
