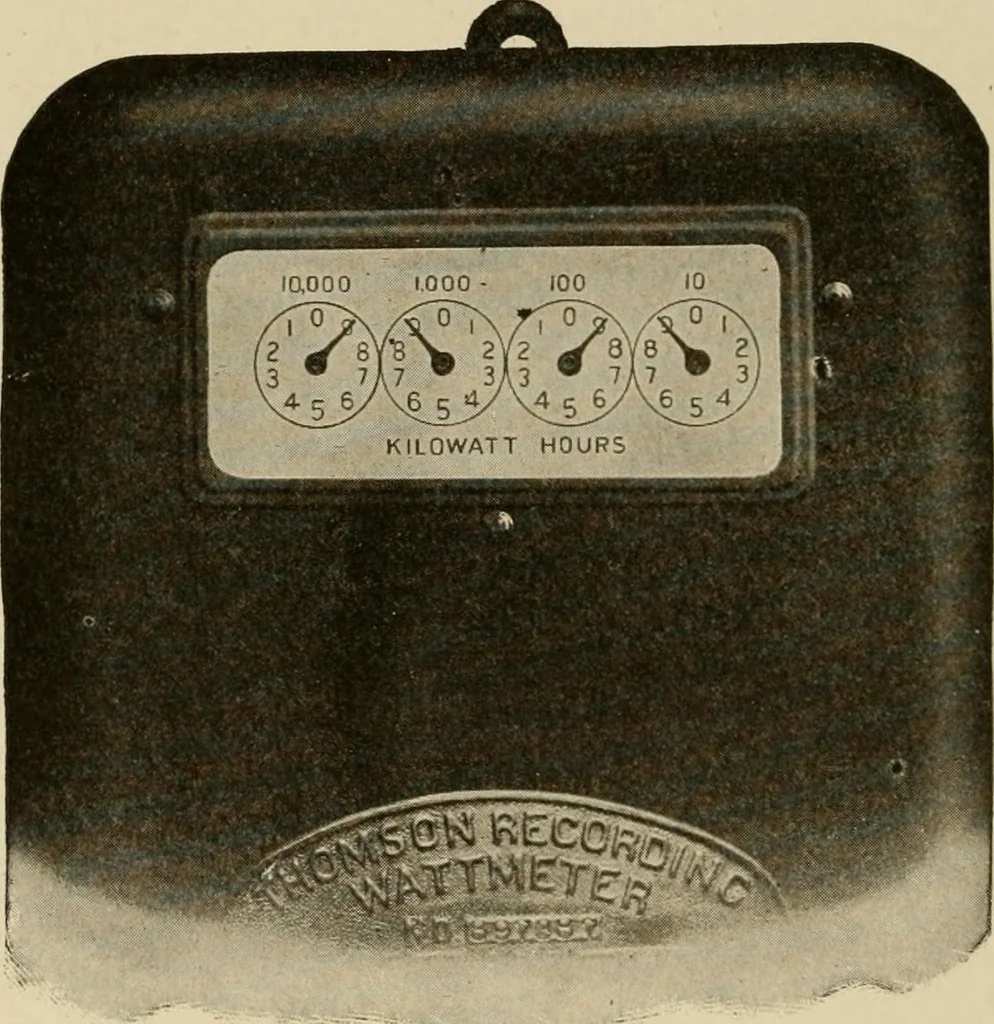

point off one place to obtain the reading in kilowatthours, or add two ciphers to obtain the reading in watt hours, Fig.125. The latest practice is to leave off all markings over the indi-vidual dials of kilowatt-hour registers, Fig. 124. Fig. 125 gives tentypical watt-hour meter readings, the… … Fig. 123. Thomson Type C V\^att-Hour Meter. Reading 8889 Kilowatt-Hours Courtesy of Commonwealth Edison Company Register Constants. For uniformity, the dial values of allmeter registers are usually the same without regard to the capacityof the meter. It will be seen that the highest reading…
