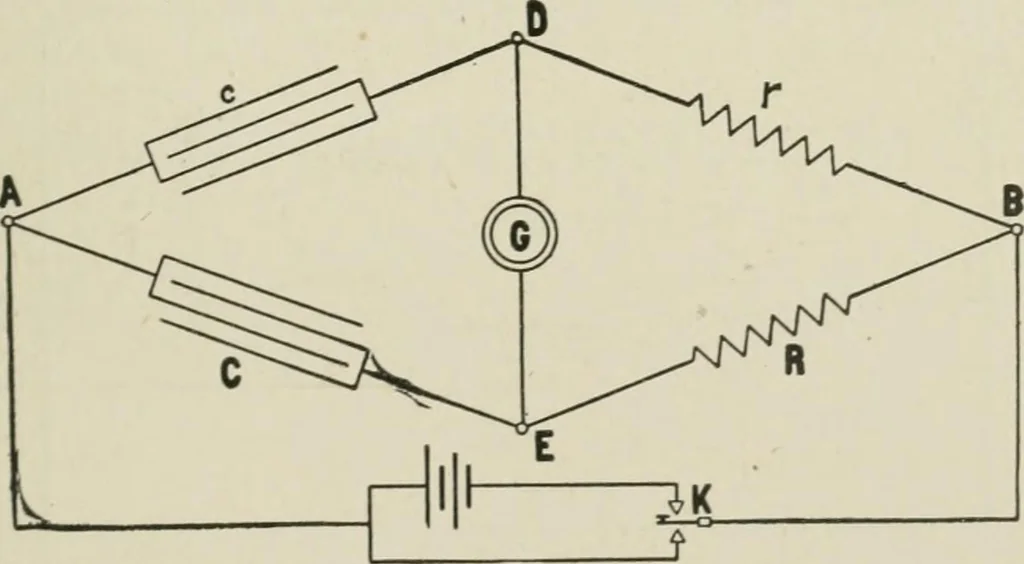

deflection I) is to thedecrease in deflection which represents the charge of c, that is, C : c..I): I) — d,therefore, D — d D X C. Bridge Hethod. In this method the capacities of a standardand of any other condenser are balanced in the arms of a bridge.Fig. 30 illustrates the necessary connections.… … Fig. 30. condensers; on depressing the key the condensers are discharged.The resistances r and R are adjusted until during charging anddischarging there is no deflection of the galvanometer. The poten-tial at D audiwill then be the same, and the condensers are therefore charged under the same…
