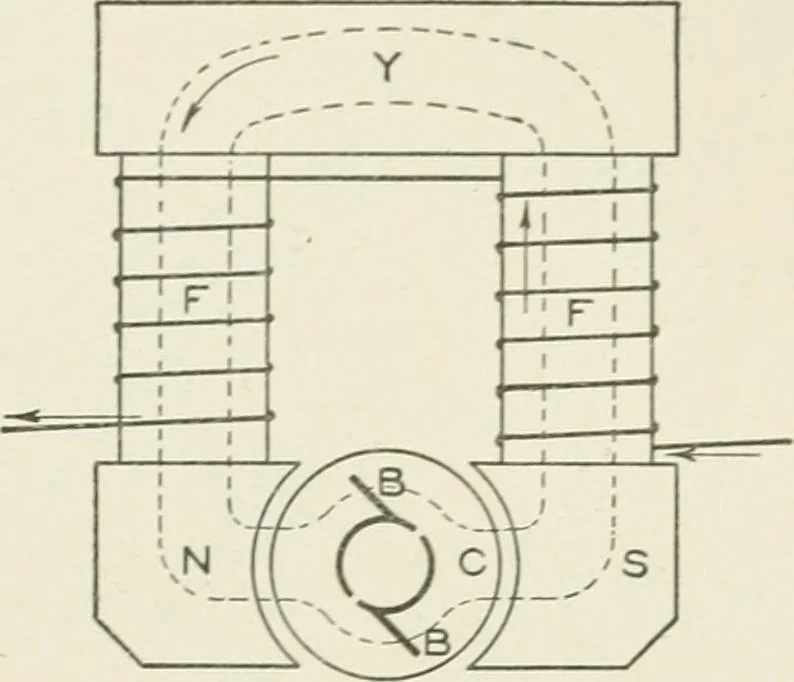

17 there is shown in outline form a simple dynamo;the yoke Y connects the field pieces FF, ujton which are woundthe field coils; the latter is charged by an external current in thedirection of the arrows. In an intense magnetic field, between thepole pieces N and S, is the armature. It is made np… … FiR. 17. 287 58 THE ELECTRIC TELEGRAPH of strips separated by insulating material, and bound together ina cylinder to form the commutator marked C; the collecting brushesBB correspond to the copper and zinc poles of a voltaic cell. A gas or steam engine is usually the motive power for a dynamo;a…
