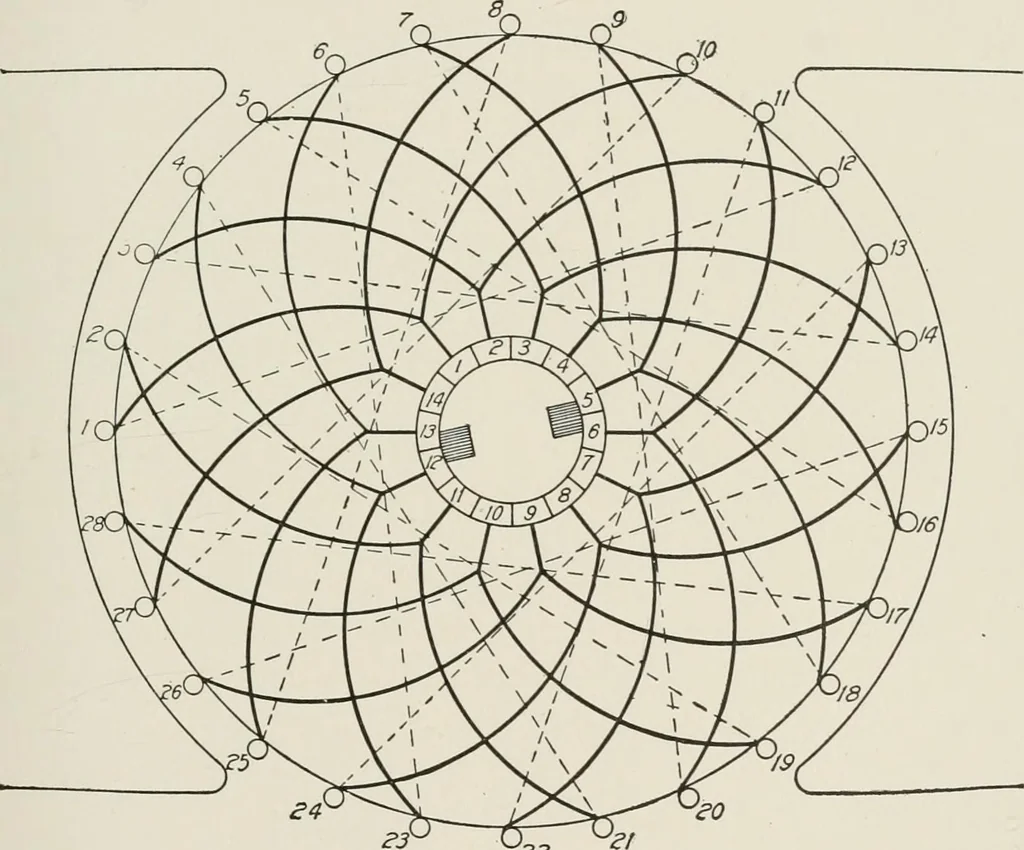

ened pitch. It will be obtained if the value for / is increased.Such a winding is shown in Fig. 130 where N = 28, 2p = 2,and / = — 8. We have then ^z = + 9 and yb= — li-lt can readily be seen that whatever currents are flowing in theshort-circuited turns will be in opposite directions, so that the… … Fig. 130. Chord Winding wi-h Thirty Inductors section are not both passing into a commutating field at the sametime, so for this reason it is not suitable for handling large outputsof current. On the following pages will be found examples of windings incommon use. In the illustrations, the short,…
