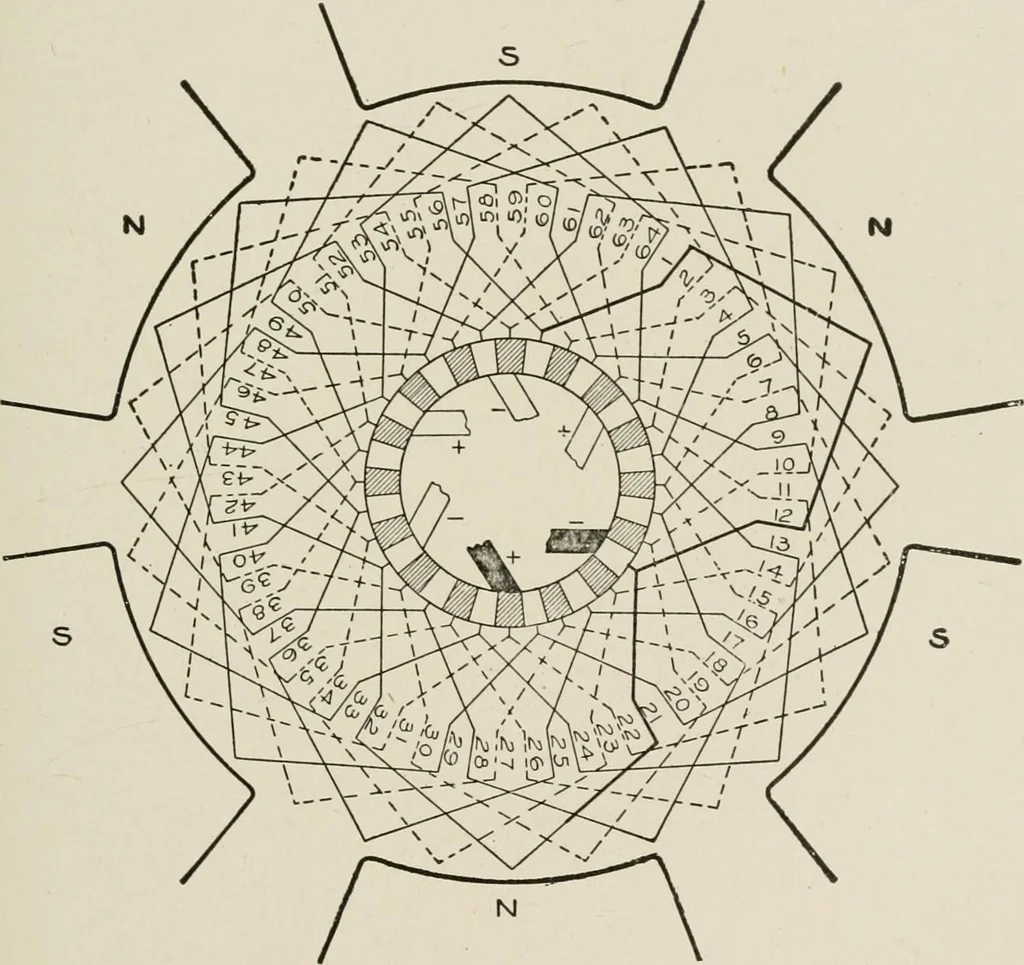

H o CALCULATIONS 113 Fig. 137 represents a six-pole duplex doubly re-entrant warewinding, consisting of 64 inductors, having a front pitch of + 9.a back pitch of + 11, and a commutator pitch of 10. The averagepitch is 10, and there are four paths in parallel through the armature.Nevertheless, only… … Fig. 137. Sis-Pole Doubly Re-entrant Wave Winding In Fig. 138 we have a six-pole drum duplex wave winding,with a back pitch of 11, a front pitch of 9, an average pitch of 10and a commutator pitch of 10. It has two paths in parallelthrough the armature; and although only two brushes are required,six…
