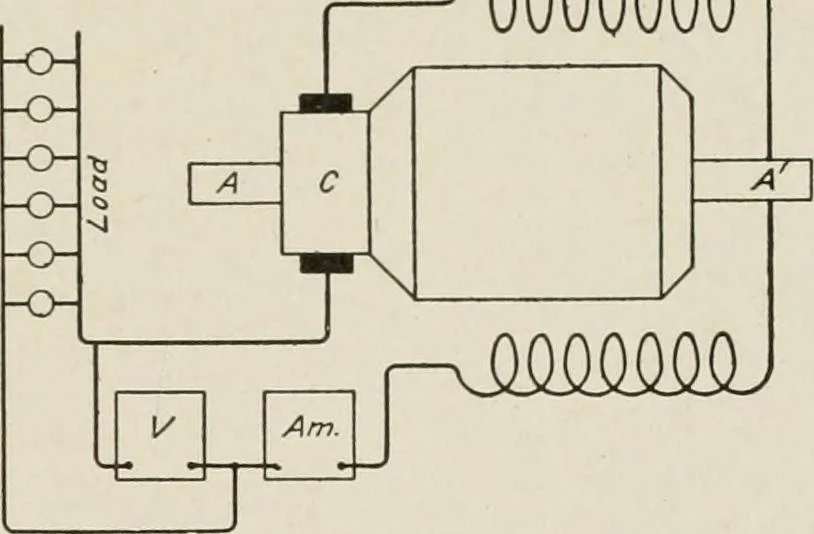

e shape of the curves, the e, m. f. increases at first withthe current, due to the increase in magnetization of the field-mag-nets. As the parts of the magnetic circuit, with increase of load,approach saturation, the reactions of the armature and IR dropsbecome of relatively greater importance; the… … Fig. 160. Diagram of Connections forSeries-Wound Generator 159 150 DIRECT-CURRENT DYNAMOS The external characteristic is plotted between current and terminale. m. f. Since the same current passes through the external circuitas passes through the armature and field windings, the external andarmature…
