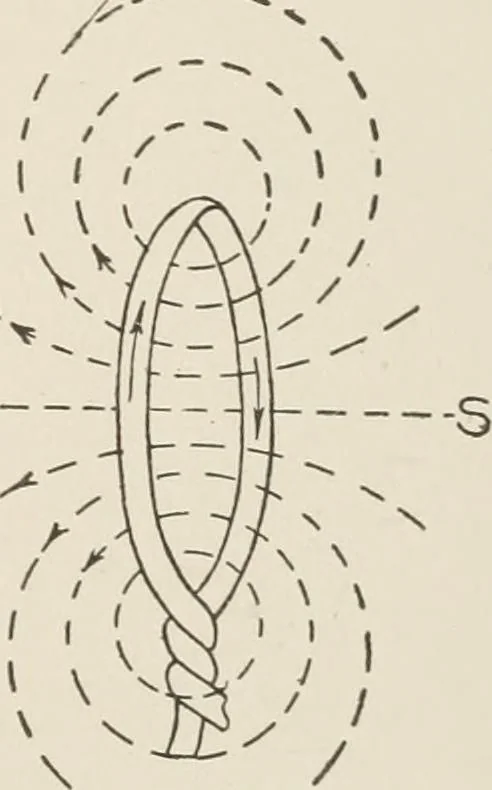

loop will beequivalent to the north pole of a magnet,and the opposite face will correspond tothe south pole. In fact, the loop willact exactly as if it were a thin diskmagnetized perpendicularly to its plane.By placing side by side several ofthese current loops, with their transverseaxes in the… … N - Fig. 7. Magnetic Field about aSingle Loop 19 10 DIRECT-CURRENT DYNAMOS leaving by one end and returning by the opposite end. A cylinderof soft iron inserted in the space within the solenoid will be foundto act strongly as a magnet when the current flows around thesolenoid; but if the current is…
