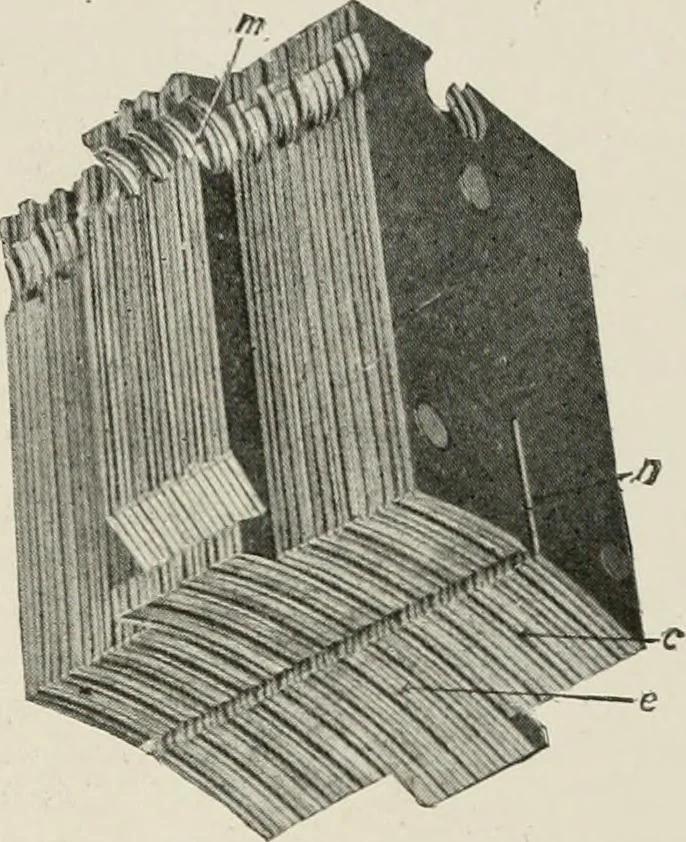

Fig. 39. Fairbanks-Morse Field Coils and Pole Piece moderate and slow speed belted generators. Their moderate speedmachines range from 2 to 125 kw., running 1850 to 675 r. p. m. 280 TYPES OF GENERATORS AND MOTORS 35 … Fig. 40. Fort Wayne Laminnted PolePiece These same machines, when run at lower revolutions per minute andsuitably changed as to windings, become their slow speed generatorsrated from 13^ to 100 kw., running at 1800 to 550 r. p. m. Thesmaller sizes are illustrated in Fig, 37,while the larger take…
